CommScope OM4 Duplex LC Fiber Patch Cable - 50/125μm Multimode, LSZH, Aqua, 1.8mm
جزئیات محصول:
| نام تجاری: | Commscope |
| شماره مدل: | CEP-LCLC-L40B003M |
| مدرک: | CEP-LCLC-L40B.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | Negotiate |
| جزئیات بسته بندی: | جعبه |
| زمان تحویل: | بر اساس موجودی |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | تهیه توسط پروژه/دسته |
|
اطلاعات تکمیلی |
|||
| رابط، رابط A: | LC/UPC | مشخصات رابط، رابط A: | دوتایی x |
|---|---|---|---|
| رابط، رابط B: | LC/UPC | مشخصات رابط، رابط B: | دوتایی x |
| رنگ غلاف: | سبز آبی | کل هسته ها، تعداد: | 2 |
| برجسته کردن: | CommScope OM4 fiber patch cable,50/125μm multimode fiber cable,LSZH aqua duplex LC cable,50/125μm multimode fiber cable,LSZH aqua duplex LC cable |
||
توضیحات محصول
Engineered for demanding network environments, this OM4 duplex LC fiber patch cable delivers exceptional performance for 40G/100G Ethernet applications. Featuring advanced bend-resistant technology and field-reversible connectors, this multimode fiber patch cord ensures reliable high-speed data transmission in modern data centers.
- Supports 40G/100G Ethernet with superior bandwidth capabilities
- Flexible Polarity: Field-reversible LC duplex connectors for easy configuration
| Product Model | CEP1CLC140B Series |
|---|---|
| Fiber Type | OM4 Multimode 50/125μm |
| Connector Type | LC/UPC Duplex Both Ends |
| Cable Diameter | 1.8mm LSZH Jacket |
| Attenuation @850nm | ≤ 3.0 dB/km |
|---|---|
| Attenuation @1300nm | ≤ 1.0 dB/km |
| Operating Temperature | -10°C to +60°C |

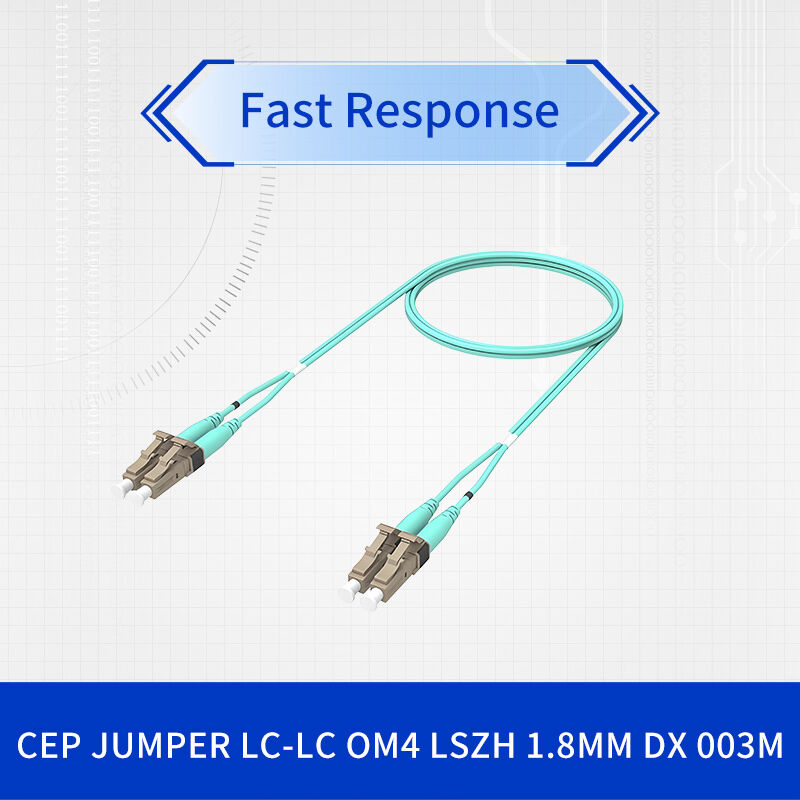

This multimode LC-LC patch cord features precision LC/UPC connectors with zirconia ceramic ferrules for optimal optical performance. The duplex zipcord design allows easy separation and routing in high-density patch panels.
Superior bend performance with attenuation change less than 0.10dB at 850nm when bent around 15mm radius. Maintains signal integrity in tight spaces common in modern data centers.
- Data Centers: Server to switch connections, cross-connects, and high-density patching
- Enterprise Networks: Backbone connections, telecommunications infrastructure, and SAN
- High-Speed Computing: 40G/100G Ethernet, storage area networks, and HPC environments
| Model Number | Length | Color Code | Typical Use Case | Price Tier |
|---|---|---|---|---|
| CEP1CLC140B001M | 1 meter | Aqua Green | Intra-rack connections | $ |
| CEP1CLC140B003M | 3 meters | Aqua Green | Standard rack connections | $$ |
| CEP1CLC140B005M | 5 meters | Aqua Green | Adjacent rack connections | $$ |
| CEP1CLC140B010M | 10 meters | Aqua Green | Data center aisle crossing | $$$ |
| CEP1CLC140B020M | 20 meters | Aqua Green | Long-distance runs | $$$$ |
- ISO 9001:2015: Quality Management System Certified
- RoHS Compliant: Restriction of Hazardous Substances
- TIA/EIA-568-C.3: Commercial Building Standard
This multimode fiber patch cord is ideal for 40G and 100G Ethernet applications in data centers, enterprise networks, storage area networks, and high-performance computing environments where high bandwidth and reliability are critical.
The advanced bend-resistant fiber maintains signal integrity even when routed around tight corners or in high-density patch panels, reducing installation constraints and minimizing performance degradation in space-constrained environments.
Each multimode LC-LC fiber patch cord is 100% factory tested for insertion loss and continuity. Individual test data is provided with each cable, ensuring performance meets specified standards before shipment.
While the LSZH jacket provides enhanced safety characteristics, specific plenum ratings may vary by jurisdiction. Please consult local building codes and specifications for plenum space requirements in your area.
